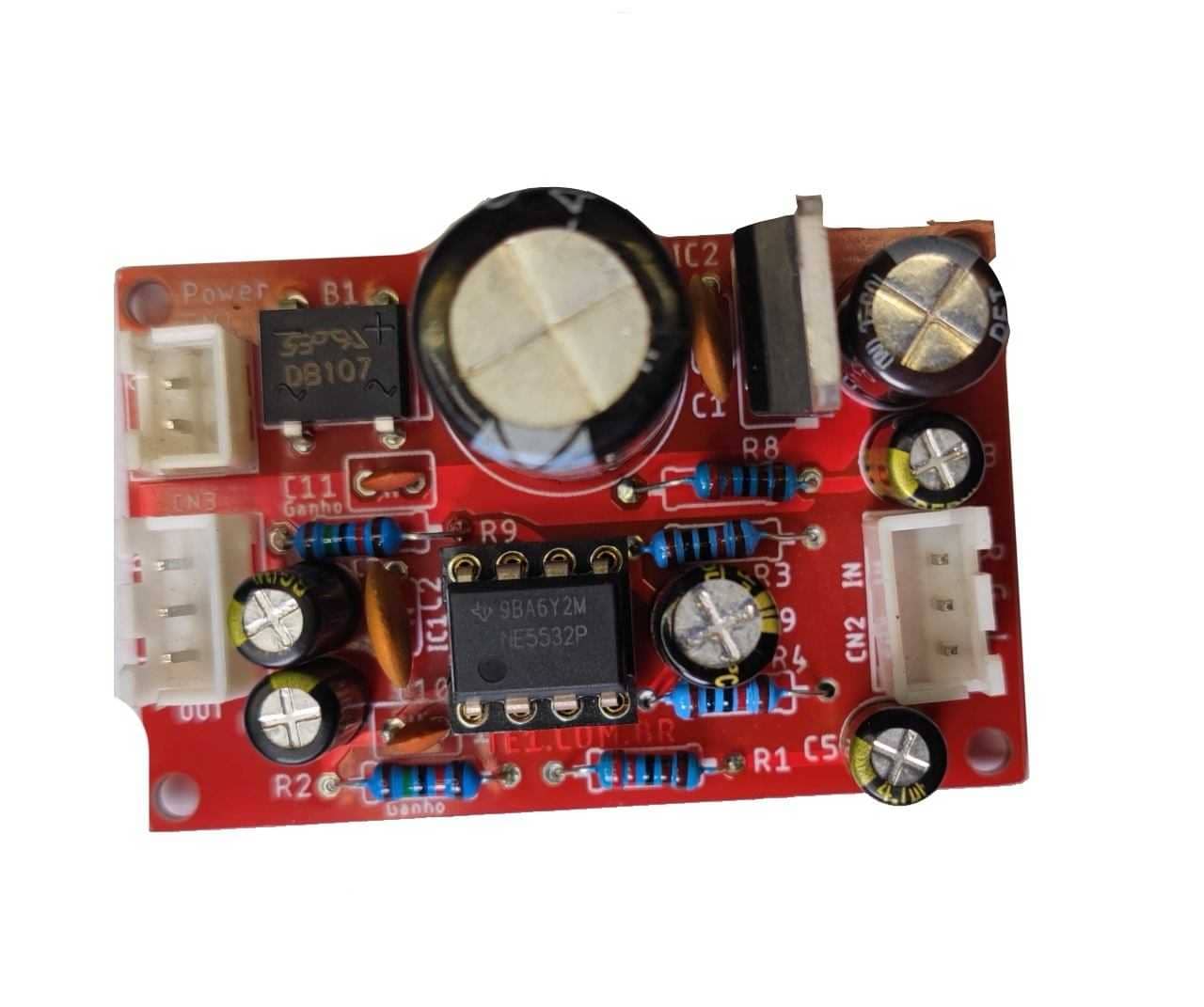

Kit montar pré-amplificador de áudio utilizando NJM2068, kit montar pré-amplificador de áudio de uso geral. Inclui todos os componentes, incluindo a parte da fonte de alimentação, só requer um trafo simples de 12V. Utiliza 1 integrado dual Op Amp NJM2068 D original.
Ideal para projetos de caixas ativas, amplificador para som ambiente, computador, games, ou onde for preciso elevar o nível de sinal de áudio e fazer melhor proveito de seu amplificador de potência.
Não requer fonte simétrica.
Caraterística, kit montar de pré-amplificador de áudio

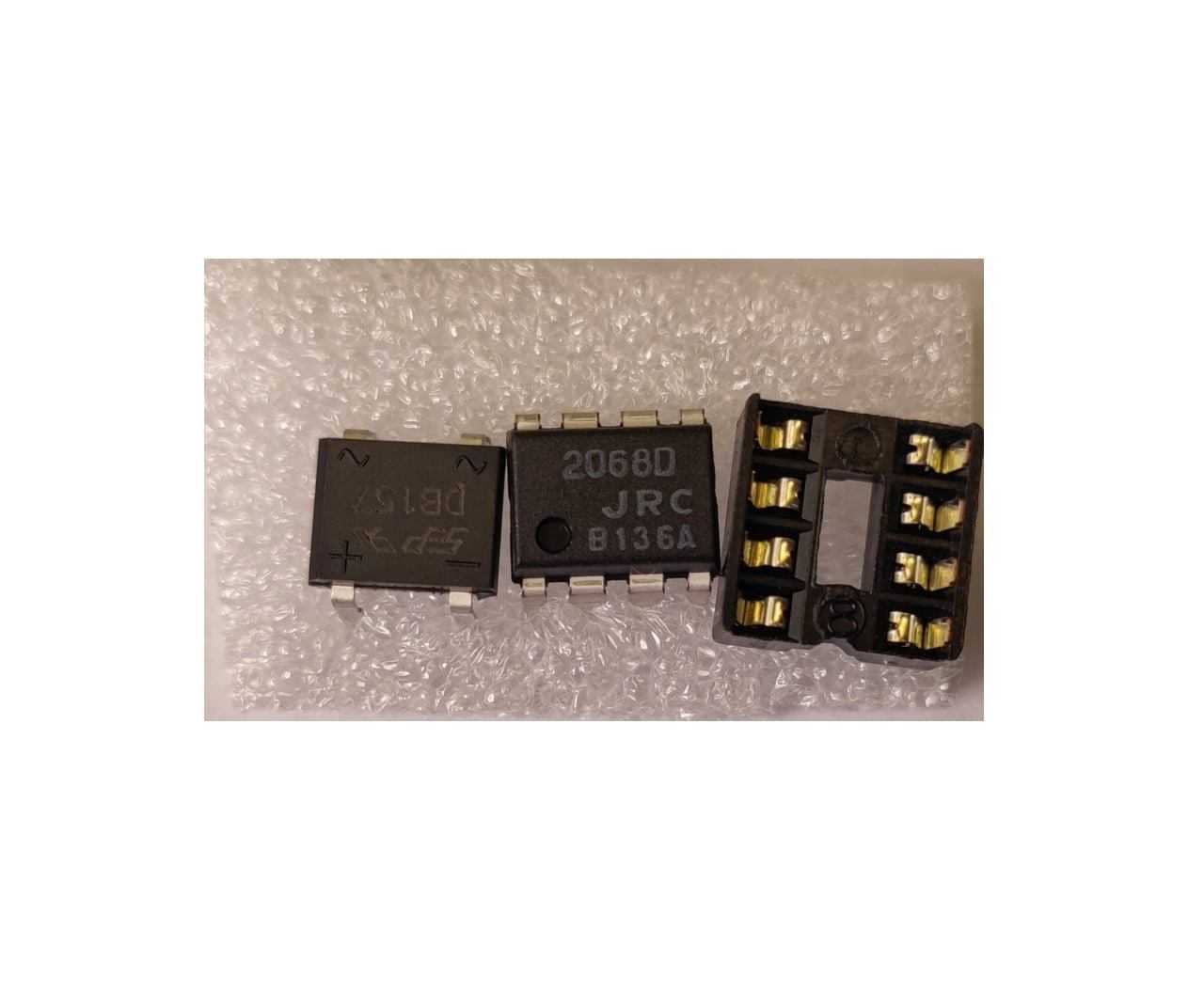

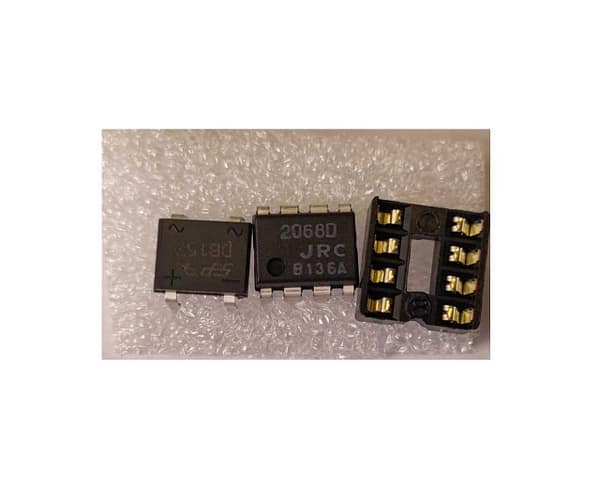

Utiliza circuito integrado NJM2068D JRC, para excelente qualidade de áudio e baixo ruído

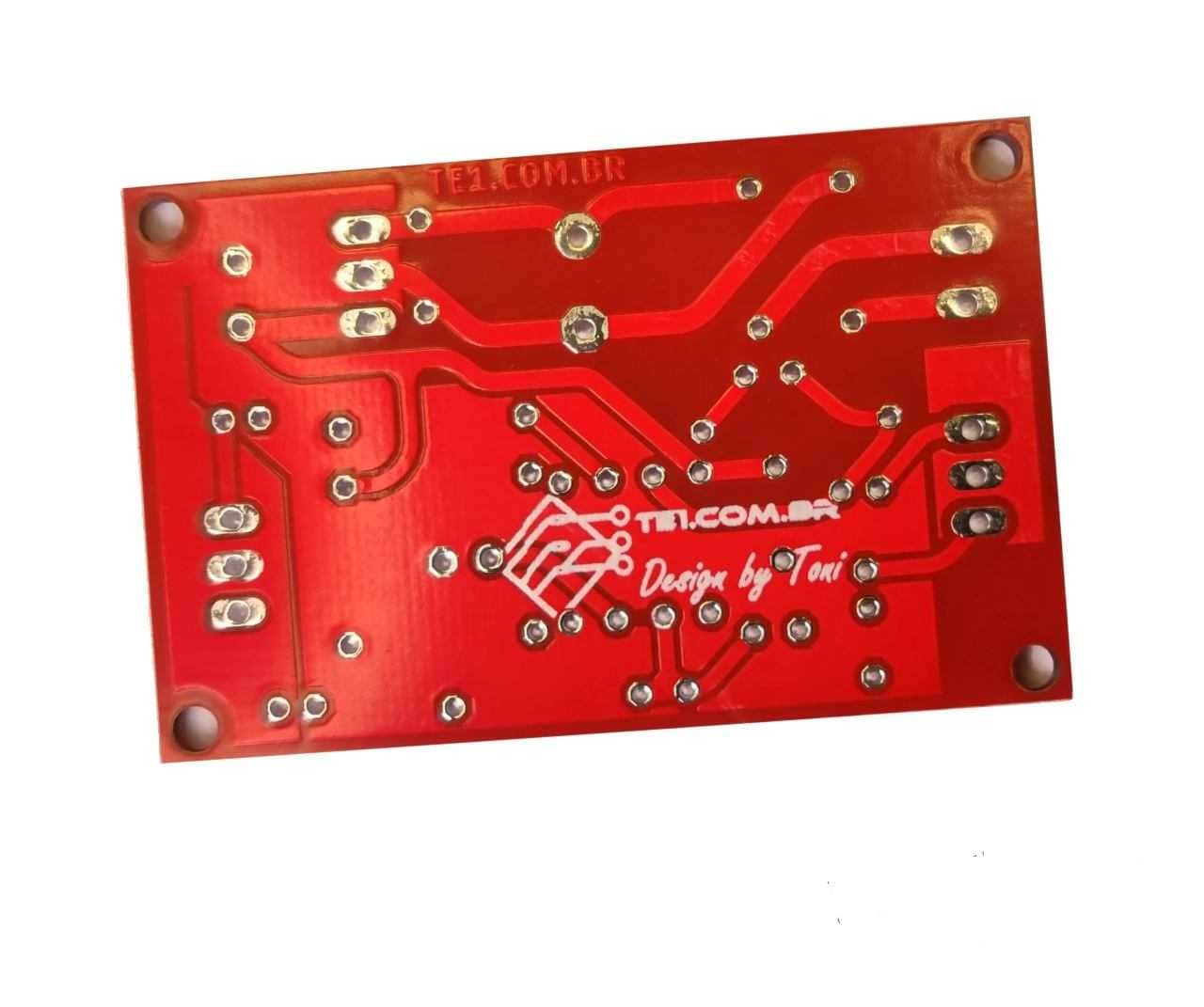

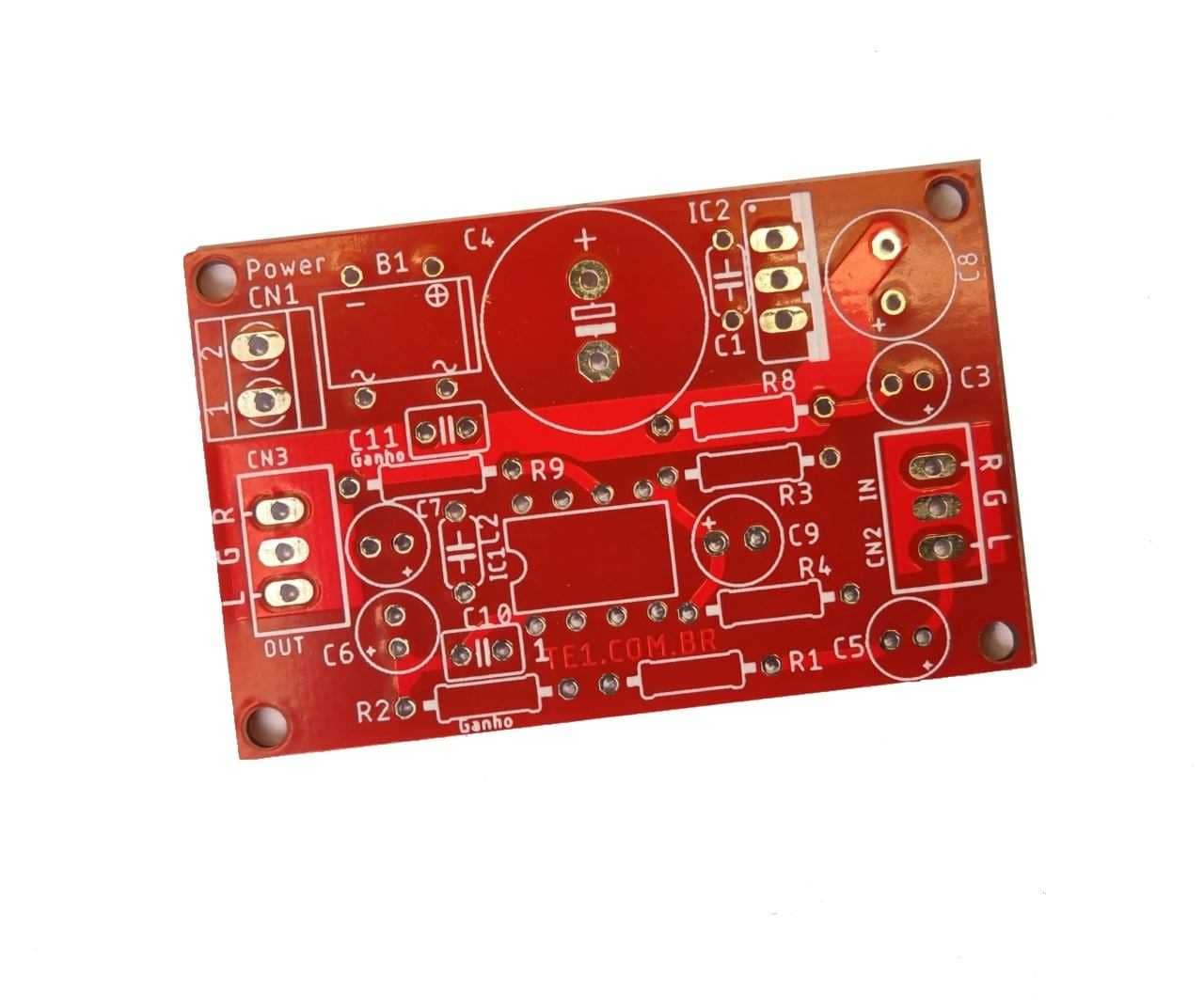

Placa de fibra de vidro com alta qualidade produzida por processo industrial.
Layout desenvolvido para melhor rendimento e evitar ruídos.
Dimensões da placa: Comprimento 50 mm * Largura 32 mm
Conectores adequados para utilizar com amplificadores de potência.
Inclui fonte de alimentação com ponte retificadora, capacitores e regulador de tensão.
Capacitores da parte de áudio, são Elna ou Rubycon, adequados para áudio.
Alimentação: 9 a 18VAC ou 12 a 22VDC
Ganho elevado ideal para várias aplicações.
Ótimo custo-benefício.
Possibilidade de alterar resistor na placa e aumentar o ganho.
Ganho atual de cerca de 5 vezes, pode alterar os resistores para valores entre 5K e 68K, quanto maior a resistência, maior será o ganho.
Incluso

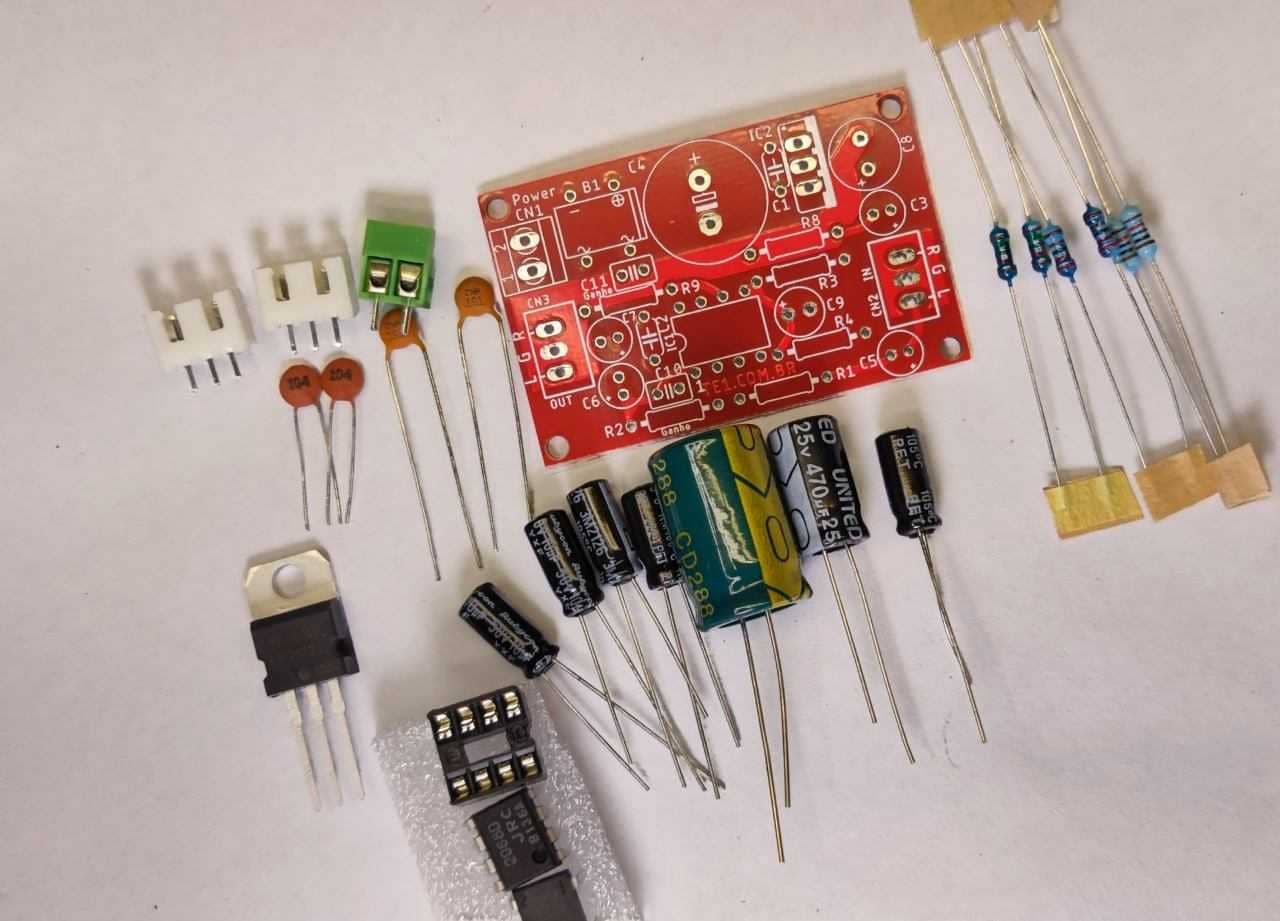

1x kit para montar de Pré-Amplificador com NJM2068
Pré-amplificador de áudio com ci njm2068 kit montar
Informação adicional
Peso
0,100 kg
Dimensões
16 × 12 × 4 cm
Pré-amplificador
Kit para montar
