Comprar Placa Amplificador TDA2030, Lm1875, Tda2040 Ou Tda2050 - Loja Toni Eletrônica
Oferta!
Placa lisa amplificador tda2030 lm1875 tda2040 ou tda2052
Placa lisa amplificador tda2030 lm1875 tda2040 ou tda2051
Placa lisa amplificador tda2030 lm1875 tda2040 ou tda2050
Placa lisa amplificador tda2030 lm1875 tda2040 ou tda2054
Compre 5 UN e ganhe 5% de desconto

Placa amplificador TDA2030, lm1875, tda2040 ou tda2050

R$ 18,71R$ 12,5033% OFF
Em até 2x de R$ 6,58 com juros A vistaR$ 11,88no PIXEconomize R$ 0,63 no PIX

Avaliado como 5.00 de 5, com baseado em 1 avaliação de cliente
(1 avaliação de cliente)

Fora de estoque

Deseja ser notificado quando este produto estiver de volta ao estoque?

1 comprado se inscreveu.
Compartilhe:
SKU: 79 Categorias: , , Tags: , , , , , , , , , , ,
, ,
Pagamento seguro
  • Elo Icone
  • Bb Icone
  • Itau Icone
  • Pix Icone
  • Bolet Icone
  • Mercado Pago Icone
  • Pagseguro Icone

Descrição

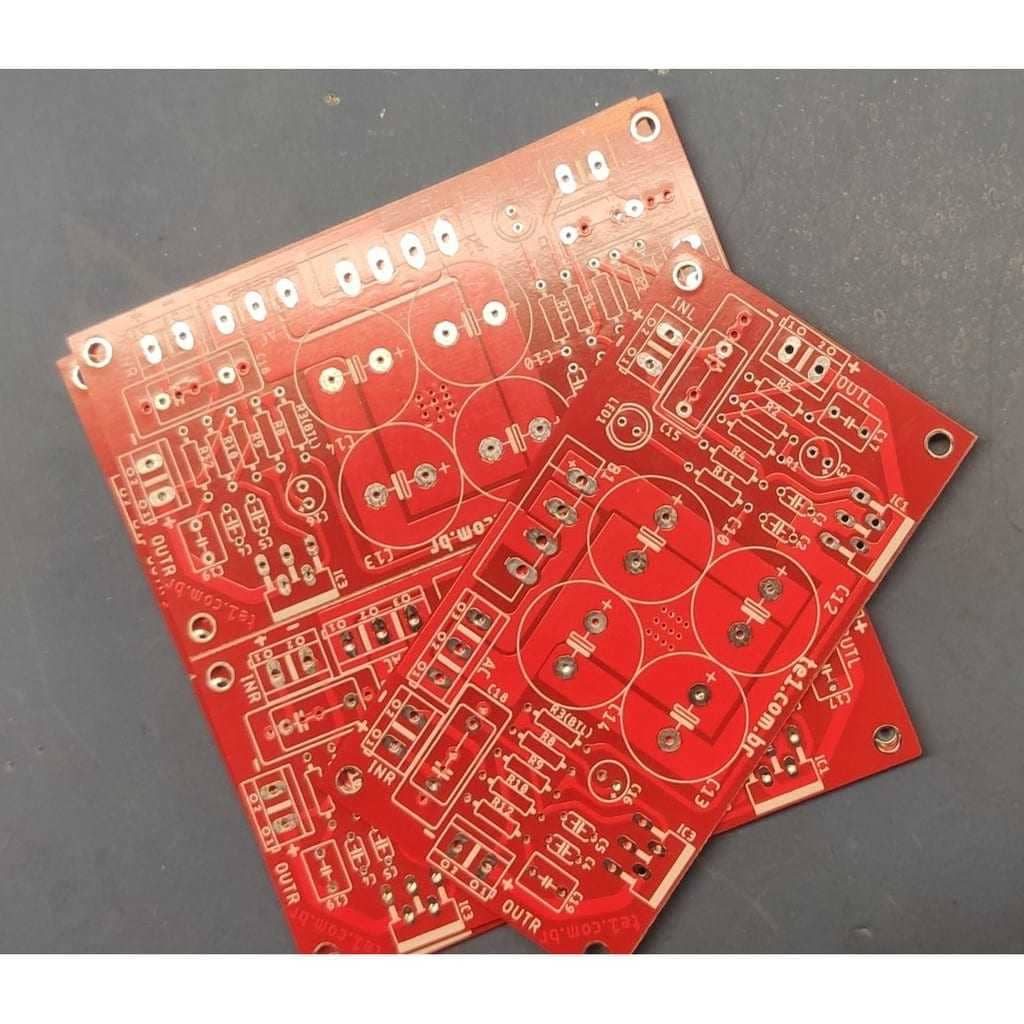

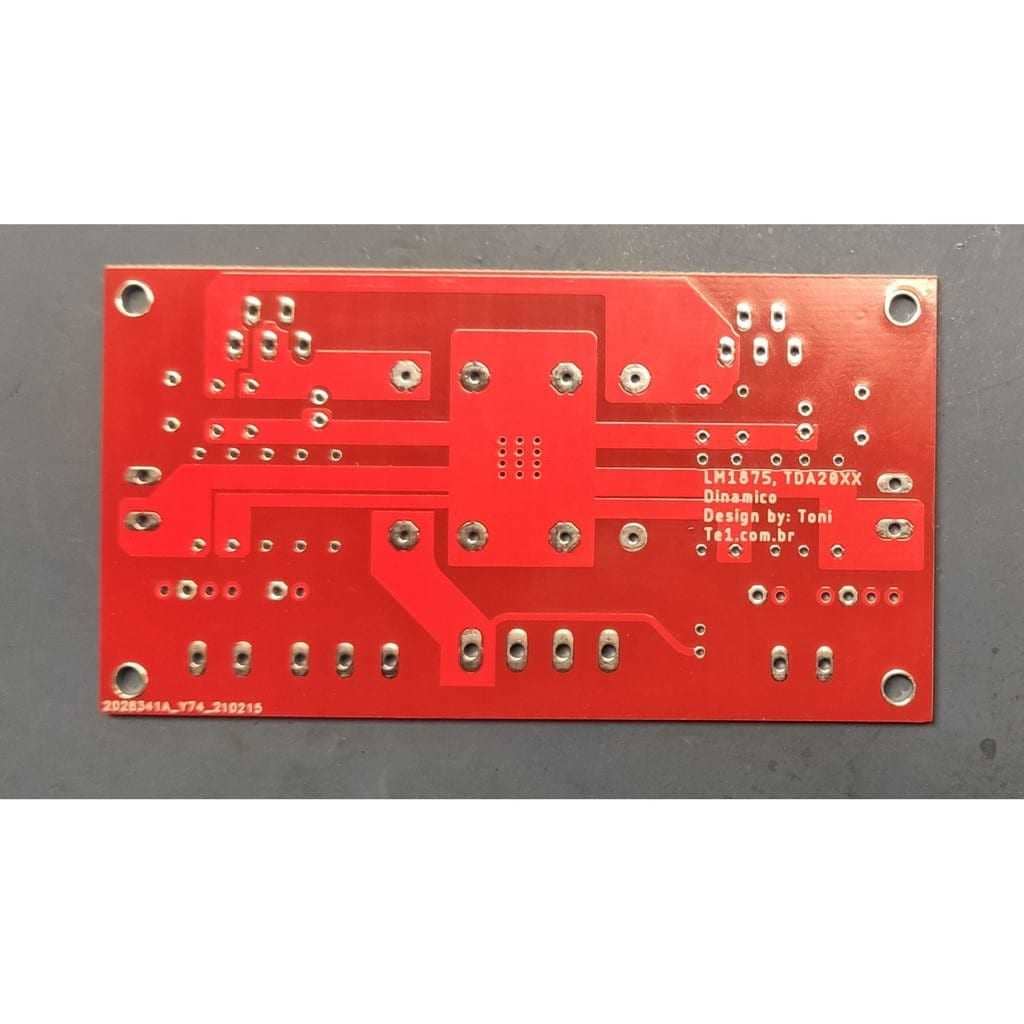

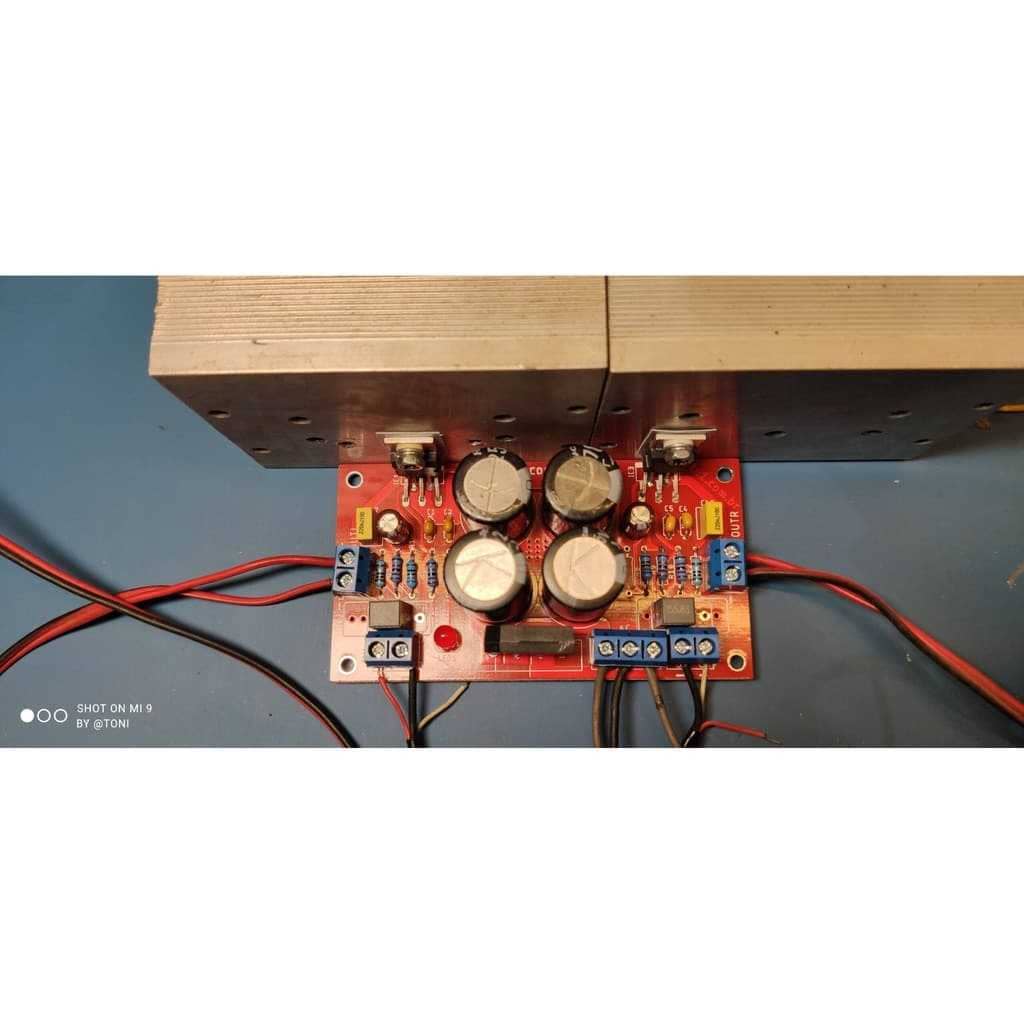

Placa amplificador TDA2030, Placa Lisa para montar amplificador de potência de áudio estéreo com TDA2030/ LM1875/TDA2040 ou TDA2050. Placa para montar amplificador estéreo, podendo utilizar diversas opções de circuito integrado como TDA2030/ LM1875/TDA2040 ou TDA2050.

Características Placa amplificador TDA2030, lm1875, tda2040 ou tda2050

  •  CI Tensão máxima (AC) Potência máxima por canal (W)
  • TDA2030 13 + 13VAC ou 15 + 15 VAC para TDA2030A 2X 18W 4Ω, 12W  8Ω
  • TDA2040 15 + 15 VAC 2x 30W  4Ω 25W 0.5% DTH, 2x 12W 8Ω 0.5% DTH
  • TDA2050 18 + 18 VAC 2x 35W 4Ω, 2x 30W  8Ω
  • LM1875 18 + 18 VAC para 4Ω e 22 + 22 para 8Ω 2X 20W 4Ω, 2x 30W  8Ω
  • Fonte de alimentação integrada (ponte retificadora + Capacitores), requer apenas um transformador de 12V — 0 — 12V
  • Espaço para 4 capacitores de 4700µF, para uma melhor filtragem.
  • Amplificador de alta qualidade.
  • Ideal para música ambiente, vídeo games, computador, TV e muito mais.
  • Placa de circuito impresso dupla simples, produzida por processo industrial.
  • Funciona com caixas acústicas de 4 e 8 OHMS.

Itens inclusos
1x placa lisa para montar amplificador utilizando TDA2030/ LM1875/TDA2040 ou TDA2050

Não acompanha os componentes, somente a placa lisa.

Placa amplificador tda2030, lm1875, tda2040 ou tda2050
Placa amplificador tda2030, lm1875, tda2040 ou tda2050

Informação adicional

Peso0,060 kg
Dimensões16 × 12 × 4 cm

Avaliações (1)

1 avaliação para Placa amplificador TDA2030, lm1875, tda2040 ou tda2050

  1. Avatar de francisco lima
    Avaliação 5 de 5

    Francisco Lima (comprador verificado) –

    Ótimo produto. Placa excelente. Manual de montagem extremamente detalhado. Resultado final nota 10! O produto chegou antes do prazo. Valeu Toni.

    • Avatar de toni rodrigues

      Toni Rodrigues –

      Olá Francisco Lima
      Obrigado pelo feedback, parabéns pela montagem!
